Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed
Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed
Contattaci

Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed

Luogo di origine: Cina Marca: TOPSKY

Informazioni dettagliate
Rotante: Braccio anteriore 360° Coppia massima: 50Nm
Peso corporeo: 16 kg Rotare: 0-120rpm
Protezione del piede: 450 m/s Dimensioni: Varia in base al tipo di attrezzatura, è preferibile il design compatto
Tempo di salto: 2.5 secondi Tempo di misurazione: Meno di 10 secondi
Tasso di falso allarme: ≤1% Vita: 100 sparatorie
Temperatura di conservazione: -45°C 65°C; Dimensione dell'apparecchio acustico: 210*100*100 mm
Diametro del lanciatore: 38 mm Armi: 5670,7 m/s
Peso della tuta: Circa 29 kg con piastre di esplosione corazzate
Evidenziare:

500kg maximum load capacity unmanned off-road platform

,

35° maximum climbing angle rescue escort transportation robot

,

13km/h maximum driving speed 6X6 differential wheeled robot chassis

Descrizione di prodotto

Unmanned Off-Road Platform (Rescue Escort Transportation Robot)
Overview

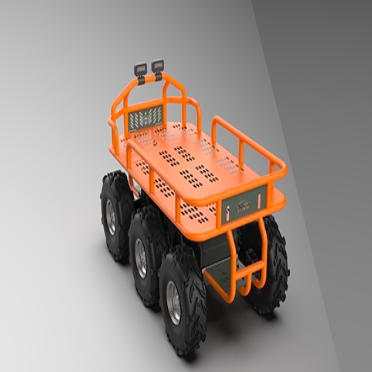

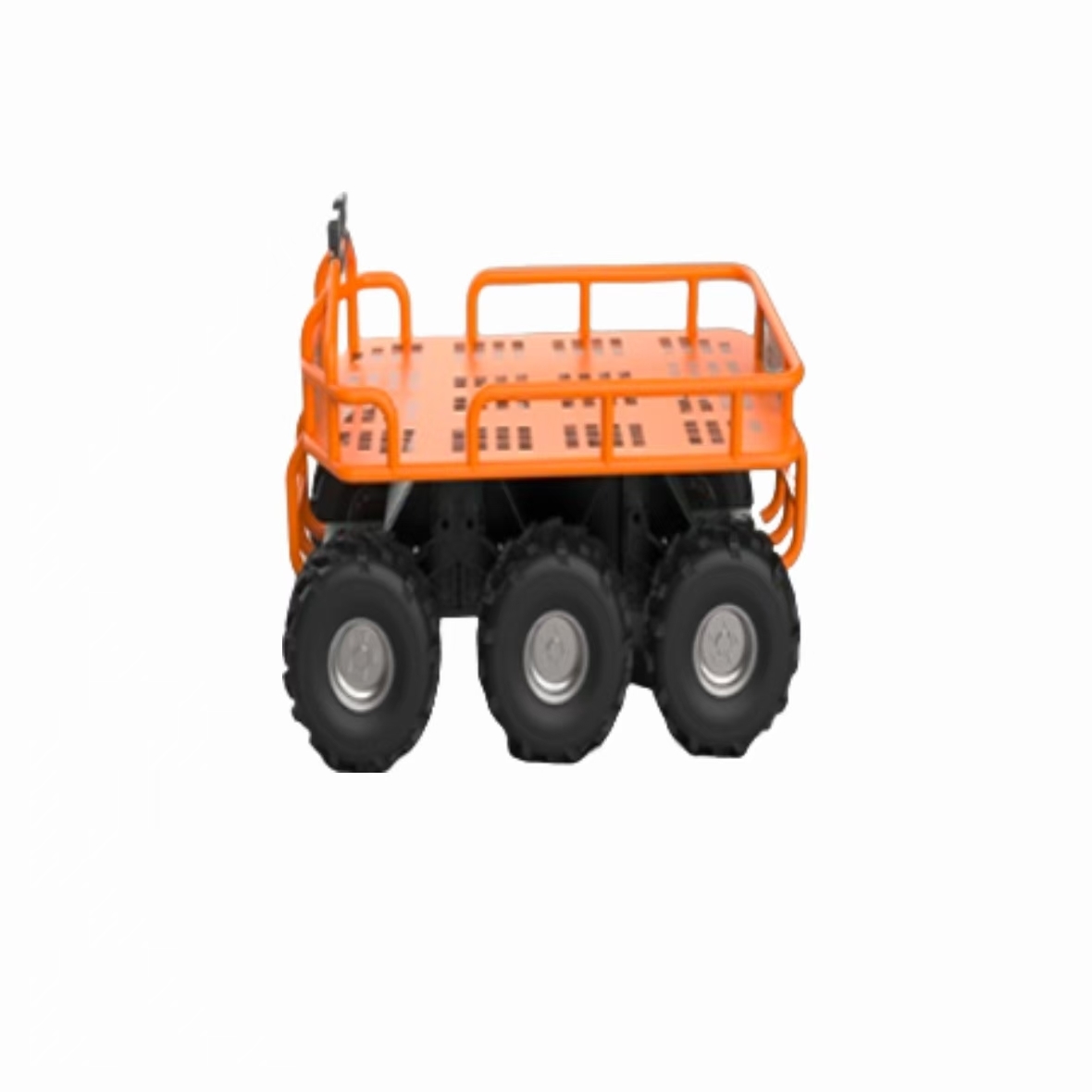

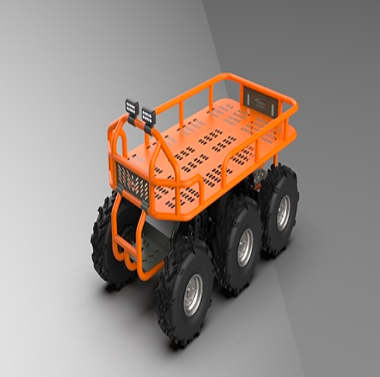

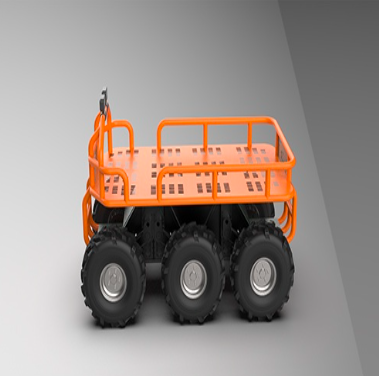

The 6X6 differential wheeled robot chassis is a high-performance mobile platform engineered to excel in complex outdoor environments and diverse operational requirements. Featuring a unique six-wheel configuration and advanced differential drive technology, this platform serves as an ideal foundation for specialized operation robots, scientific research and exploration robots, and industrial application robots. It delivers a robust and reliable mobility solution for demanding robotic applications.
Application Scenarios
  • Rescue operations for large-scale fires in petroleum and chemical enterprises
  • Firefighting and rescue in collapse-prone areas including tunnels and subways
  • Emergency response in environments with potential explosive gas or liquid leaks
  • Rescue missions in smoke-filled or toxic gas environments
  • Close-proximity firefighting operations where personnel safety is at risk
Technical Specifications
Product Name 6X6 Differential Wheel Robot Chassis
Model TIGER-03
Power System Electric, Lithium Battery
Chassis Dimensions ≤ 2270mm (L) × 1250mm (W) × 845mm (H)
Cabin Dimensions ≤ 1350mm (L) × 350mm (W) × 528mm (H)
Weight 550kg
Maximum Load Capacity 500kg
Motor Power 3kW × 6
Motor Selection 96V High-Precision DC Wheel Hub Motor
Steering Method Differential In-Place Steering
Maximum Driving Speed 13km/h
Maximum Obstacle Height 300mm
Maximum Obstacle Width ≤ 400mm
Ground Clearance 280mm
Maximum Climbing Angle 35°
Surface Treatment Whole Machine Baking Paint
Main Materials Alloy Steel / Carbon Steel Square Tube / Aluminum Alloy
Tire Options Regular Radial Tires / Low-Pressure Tires (Customizable)
