IP68 Waterproof Pipeline Inspection Robot with 120-Meter Cable and High-Definition Camera for Municipal and Drainage Pipelines

Descrizione di prodotto

Overview:

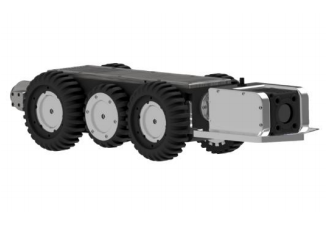

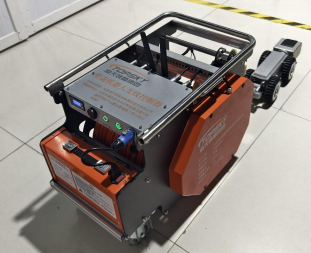

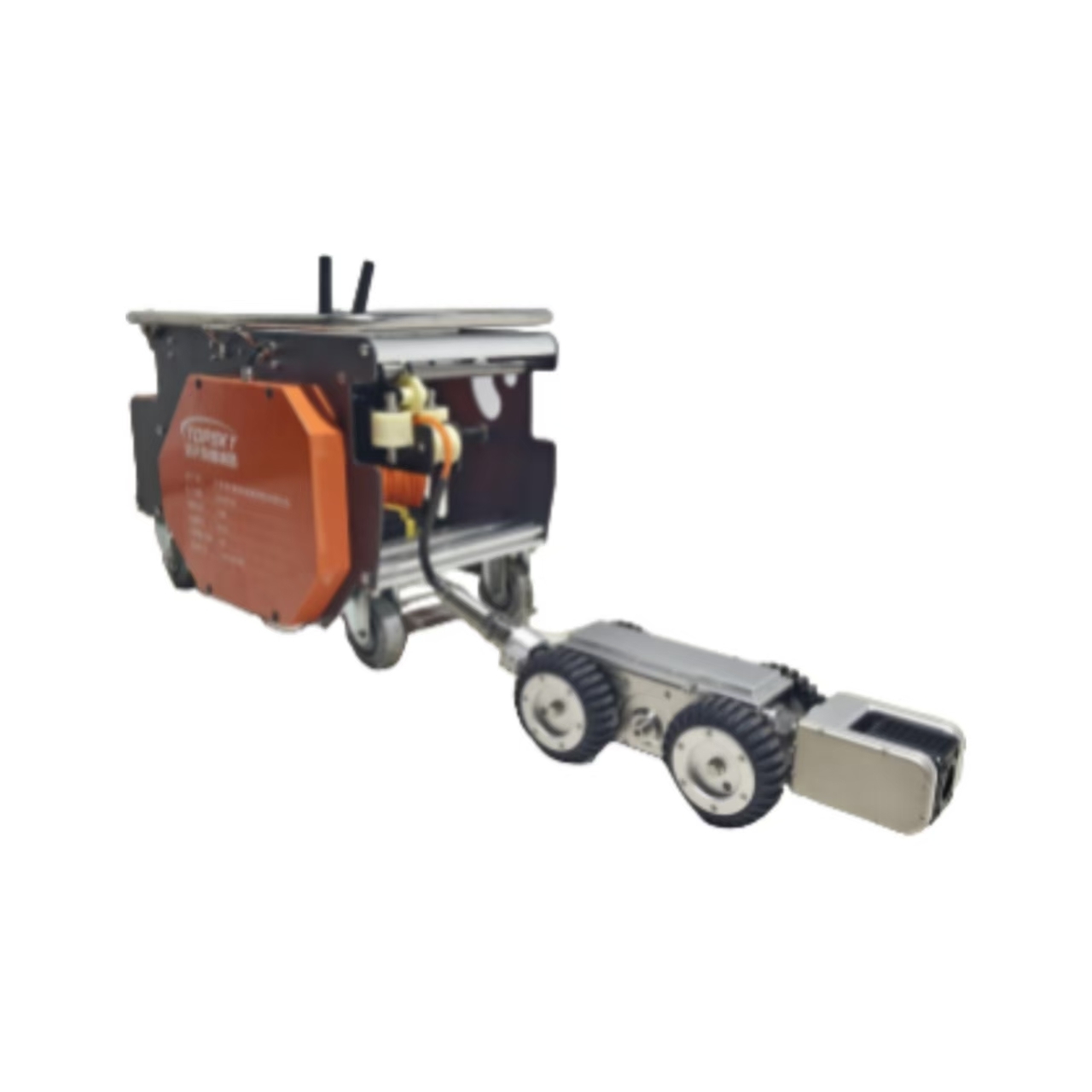

The body is made of stainless steel shell material, with airtight protection and IP68 full waterproof design. It can be used when immersed in water. It is compatible with tablet control: an 8-core powerful processor, a 10.4-inch high-definition color LCD display, achieving intelligence. 2 million high-definition pixels, enabling infrared recording, entry of working condition information, control of the rotating camera, the cable of the reel is standard 120 meters, assisting in real-time viewing of the working distance. The unique offline operation series can be used in any location, and it can be used normally after detection. The detection report can be directly output.
Scope of Use

• Municipal pipelines
• Drainage pipelines
• Sewage pipelines
•  Firefighting pipelines
• Tunnels
• Ventilation pipelines
• Product features
• Light in weight, small in size, simple to operate
• Dual-motor six-wheel drive design provides powerful power; easily navigate various complex terrains.
• Sealed waterproof: IP68 level highest waterproof design;
• High-definition camera: Uses high-definition acquisition camera
• Precise positioning: Centimeter-level measurement and positioning of the body
• Work condition recording: Record of engineering information status 7. Inspection report: Inspection completed, inspection report can be directly issued
• Main technical indicators
• Horizontal angle: 0° - 360°
• Radial angle: 0° - 90°
•  Reset: One-click self-resetting function
• Cable: Length standard 120 meters, Tensile strength standard 200KG
• Dimensions: Length * Width * Height 730mm * 382mm * 471
•  Battery: 60V, 15A, Theoretical maximum continuous power output 7 hours
• Line retraction: Automatic retraction / Manual retraction / Active retraction
• Metering: Electronic coded metering
• Power switch: Electronic standard configuration
