Casa ProdottiContro attrezzatura del terrorismoJJB30 Laser Methane Detector 30m Range 7.4V Battery

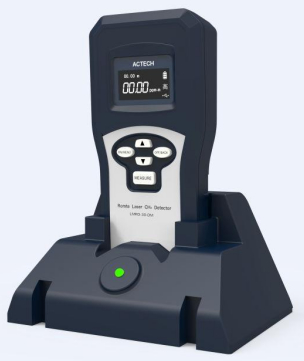

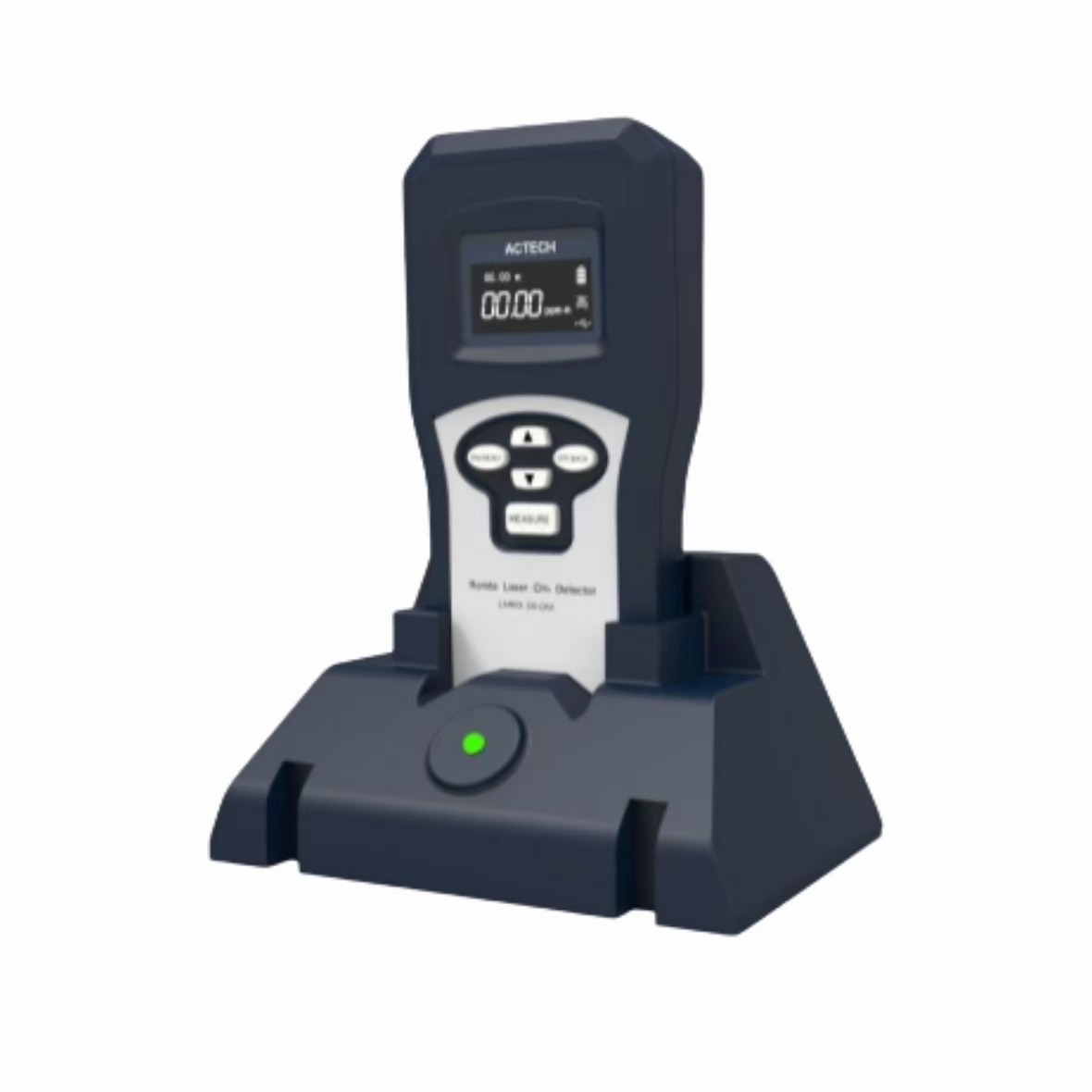

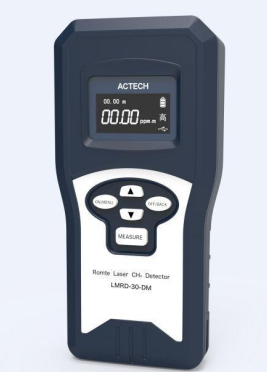

JJB30 Laser Methane Detector 30m Range 7.4V Battery
JJB30 Laser Methane Detector 30m Range 7.4V Battery JJB30 Laser Methane Detector 30m Range 7.4V Battery JJB30 Laser Methane Detector 30m Range 7.4V Battery JJB30 Laser Methane Detector 30m Range 7.4V Battery
Contattaci

JJB30 Laser Methane Detector 30m Range 7.4V Battery

Luogo di origine: Cina Marca: topsky

Informazioni dettagliate
Batteria: Batteria al litio da 7,4 V/2000 mAh Peso del motore principale: 28 kg
Forza di trascinamento: 7T Tasso di falso allarme: 1%
Temperatura operativa: －10 ℃ -40 ℃ Massima rilevazione: ≥ 2,5 km (piedi) ≥ 5,0 km (veicolo/nave)
Utilizzo: Forze dell'ordine e operazioni militari Grado di protezione: Sicurezza pubblica di secondo livello
Potenza leggera viola: 700mW Pixel: 1080p
Portare il peso: <30 kg Capacità del serbatoio dell'acqua: 16l
Angolo di stabilità del rotolo: 45 gradi distanza di controllo di cavo: 1000 m
Stampante: Stampante micro termico
Evidenziare:

laser methane detector 30m range

,

methane detector 7.4V battery

,

counter terrorism methane detector

Descrizione di prodotto

JJB30 Mine-use Laser Methane Remote Measuring Instrument
Overview
The JJB30 Mine Laser Methane Remote Measuring Instrument is designed using our company's internationally leading optoelectronic device technology. It operates on the principle that methane gas absorbs specific laser wavelengths, with absorption intensity directly proportional to methane concentration (following the Lambert-Beer law).
This handheld gas detector is primarily used for remote measurement of methane and methane-containing gases (including natural gas or similar gases). By directing a laser beam at the detection point, it can quickly measure methane gas concentration within a 0 to 30 meter range. The device measures methane concentration along the laser path by analyzing reflected signals from target points such as coal mine corners, gas pipelines, ceilings, walls, floors, or ground surfaces.
Product Features
  • Precise methane concentration measurement capability
  • Over-limit alarm functionality
  • Five-digit digital display with 1 ppm*m resolution
Technical Parameters
Parameter Specification
Effective telemetry range 0m - 30m
Measurement range (0 - 6400) ppm*m (equivalent to 0 - 4% CH4 over 0.16m path length)
Basic error ±10% of true value (0 - 6400 ppm*m range)
Alarm point setting Adjustable between 100 - 6400 ppm*m with audible alarm
Display method Liquid crystal display
Display resolution Methane concentration: 1 ppm*m, Distance: 0.01m
Data refresh time ≤ 1 second
Enclosure protection IP54 rated
Battery life ≥ 8 hours standby
Explosion-proof certification Exib IMb
Safety standard Certified to applicable safety standards
