Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range
Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range
Contattaci

Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range

Luogo di origine: Cina Marca: topsky

Informazioni dettagliate
Intervallo di misurazione: 0-550mg/100ml Imbracatura: 1200mm×80mm
Individui il modo: Automaticamente Capacità di vetro rotto: Vetro temperato ≤ 12 mm
Diametro del grembiule: 38 mm Altro nome: Abiti di isolamento medico di tipo copertura
Angolo: 120 gradi Manipolatore Max Grab: 10 kg
Vita: 100 sparatorie Modo di controllo: Batteria alimentata
Livello di protezione: Livello IIIA di NIJ Peso del motore principale: 28 kg
Fornitura di alimentazione del sistema: AC220V/80W Potenza leggera viola: 700mW
Spostamento verticale: 0-30cm
Evidenziare:

lightweight explosive disposal robot

,

10kg grab bomb disposal robot

,

500m range counter terrorism robot

Descrizione di prodotto

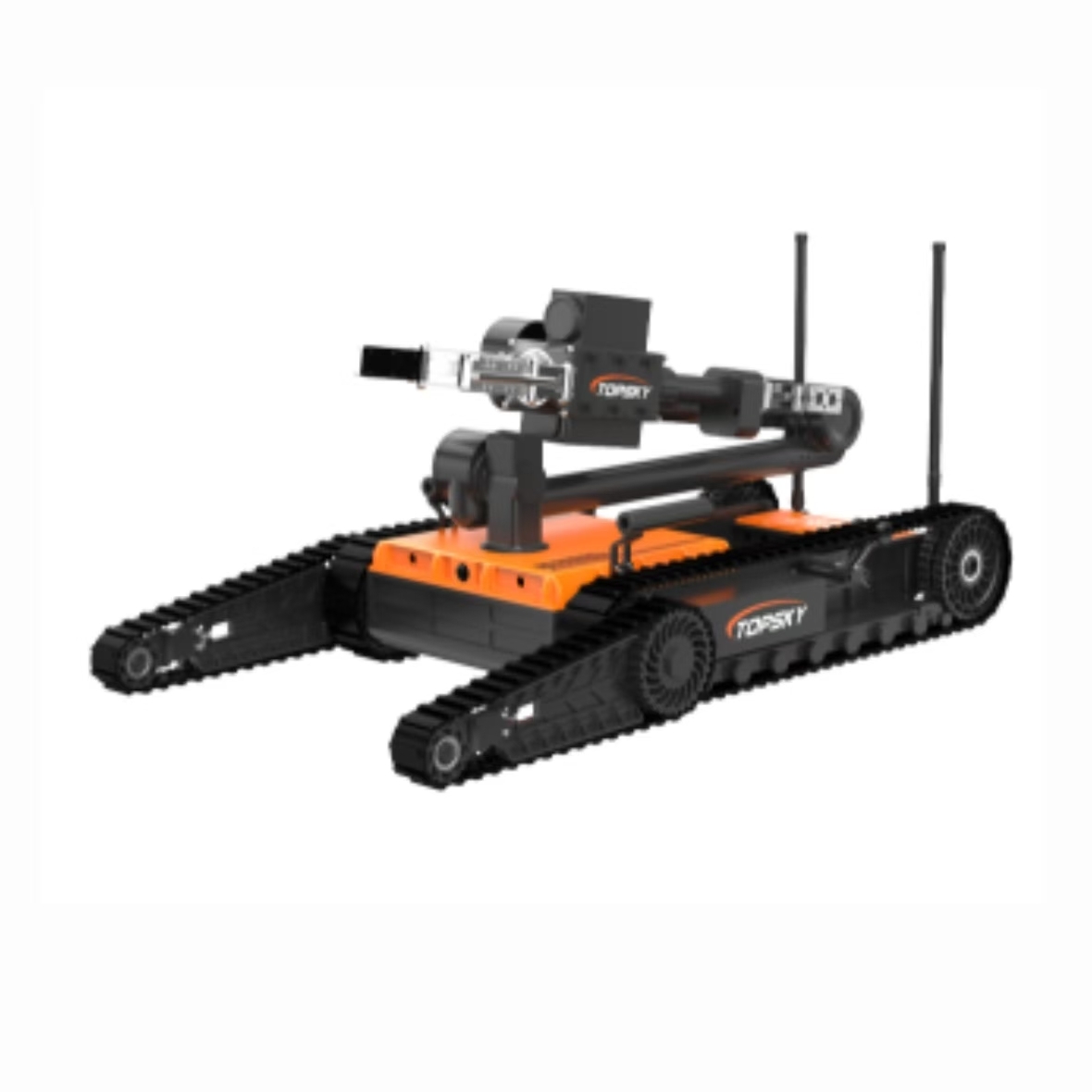

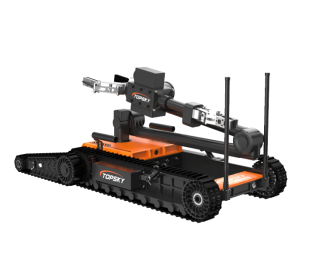

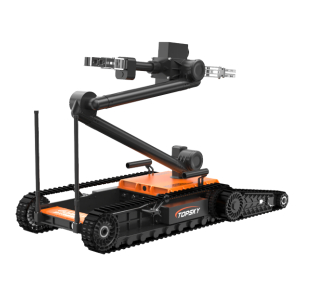

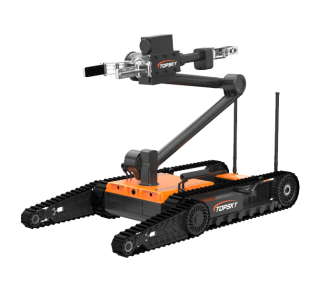

Lightweight Explosive Ordnance Disposal Robot
Overview
Designed for explosive handling and reconnaissance in inaccessible terrain, this EOD robot features a 7-degree-of-freedom robotic arm capable of rotating at various angles. The arm can lift up to 16kg at the proximal end and 3kg at the gripper, and can be equipped with explosive destruction devices for on-site neutralization.
Key Features
  • Advanced Robotic Arm: 7 degrees of freedom with 15 preset shortcut functions and one-click reset
  • Superior Mobility: Climbs 45° slopes, 43° stairs, overcomes 30cm obstacles, and crosses 40cm trenches
  • Enhanced Vision System: 4 HD cameras plus 1 pan-tilt-zoom camera with 1km communication range
  • Modular Design: Robotic arm, battery, and control box components for easy maintenance
  • Dual Control: Wired operation capability for environments with network interference
Technical Specifications
Model ER3 Generation 9
Dimensions ≤ 830mm (L) × 600mm (W) × 450mm (H) in transport state
Weight ≤ 37kg
Power Lithium Polymer Battery
Max Speed ≥ 1.8m/s with variable speed control
Operation Time ≥ 4 hours continuous
Control Range ≥ 500m wireless (visual)
Protection Rating IP65 (whole machine)
Compliance GA/T 142-1996 Police Industry Standard
Performance Capabilities
  • Slope climbing: ≥ 45°
  • Stair climbing: ≥ 43°
  • Obstacle clearance: ≥ 300mm
  • Trench crossing: ≥ 400mm
  • Water fording: 200mm depth
  • Braking distance: ≤ 0.1m
  • Straight running deviation: ≤ 3%
